31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket

Product Categories
Guangzhou Tieqi Construction Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket

Brand Name : TQ

Model Number : 31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket Original

Certification : CE,ISO

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable price

Payment Terms : Western Union, T/T

Supply Ability : 300pcs /Month

Delivery Time : 5-8 Weekdays

Packaging Details : Wooden case or as required

Product name : 31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket Original

Applicable machine model： : Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS

Applicable Industries： : Mechanical repair shops, retail, construction, energy, mining

category : Hydraulic CONTROL VALVE

Condition : NEW/REBUILT

Brand : TQ

Contact Now

31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket Original



PRODUCT DESCRIPTION
Model: 31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket Original category: Hydraulic Pump
Brand: TQ Place of Origin:Other Country
Condition: Original & Oem Warranty: 12 months
MOQ: 1 pcs Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order) Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation

31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket

31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket

31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket

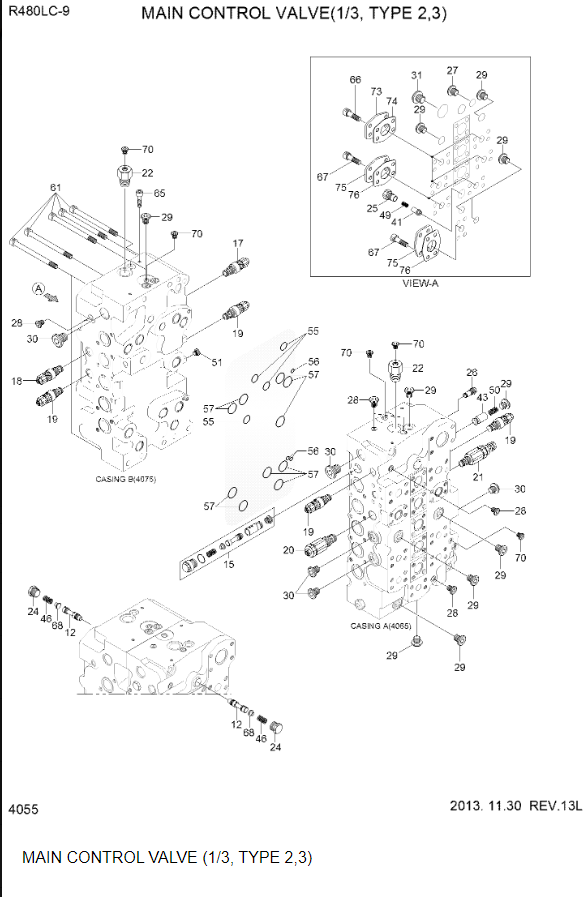

Pos. Part No Qty Parts name Comments
*. 31QB-17000 [1] MAIN CONTROL VALVE TYPE 2
*. 31QB-17100 [1] MAIN CONTROL VALVE TYPE 3
12 31QB-17720 [1] SPOOL KIT-BYPASS CUT1
15 31QB-17810 [1] ARM REGEN CUT ASSY TYPE 2
15 31QA-17811 [1] ARM REGEN CUT ASSY TYPE 3
17 31QB-17740 [1] PORT RELIEF VALVE
17 31QB-17740K [1] PORT RELIEF VALVE
18 31QB-17750 [1] PORT RELIEF VALVE
18 31QB-17750K [1] PORT RELIEF VALVE
19 31QB-17760 [4] PORT RELIEF VALVE
19 31QB-17760K [4] PORT RELIEF VALVE
20 31QB-17780 [1] PORT RELIEF VALVE
20 31QB-17780K [1] PORT RELIEF VALVE ASSY
21 31QB-17790 [1] PORT RELIEF VALVE
22 31QB-17800 [2] RELIEF VALVE-NEGACON
24 31QB-17930 [2] PLUG ASSY-BY PASS
25 31QB-17940 [1] PLUG
26 31QB-17920 [1] PLUG
27 31N8-17550 [1] PLUG
28 31N4-18090 [5] PLUG
29 31N8-17500 [11] PLUG
30 31N4-18080 [5] PLUG
31 31N8-17540 [1] PLUG
41 31QB-18660 [1] POPPET
43 31QB-18680 [1] POPPET
46 31QB-18240 [2] SPRING
49 31QB-18720 [1] SPRING
50 31QB-18730 [1] SPRING
51 31N8-18680 [1] PLUG
55 S631-022004 [4] O-RING
56 S631-010004 [3] O-RING
57 S631-030004 [10] O-RING
61 S109-201806 [10] BOLT-SOCKET
65 S109-120206 [4] BOLT-SOCKET
66 S107-120154 [16] BOLT-SOCKET
67 S107-100154 [12] BOLT-SOCKET
68 31QB-18360 [2] SPRING SEAT-BC
70 31N8-19460 [5] CAP-DUST
73 31QB-19620 [4] COVER 1-1/4
74 31QB-19630 [4] GASKET 1-1/4
75 31QB-19640 [3] COVER 1
76 31QB-19650 [3] GASKET 1





Pos. Part No Qty Parts name Comments
*. @ [1] MAIN CONTROL VALVE SEE 4050
N2. XKAY-01322 [1] HOSING-VALVE,RH
3 XKAY-01502 [1] SPOOL ASSY-ARM 2
4 XKAY-01381 [1] SPOOL ASSY-BUCKET
5 XKAY-01503 [1] SPOOL ASSY-BOOM 1
6 XKAY-01326 [1] SPOOL ASSY-TRAVEL
7 XKAY-01327 [1] SPOOL ASSY-TS
12A. XKAY-01332 [4] SPOOL CAP-A
12B. XKAY-01333 [1] SPOOL CAP-B
13A. XKAY-01334 [4] SPOOL FLANGE-A
13B. XKAY-01335 [1] SPOOL FLANGE-B
14 XKAY-01336 [10] O-RING
15 XKAY-01337 [1] POPPET
16 XKAY-01338 [1] SPRING
17 XKAY-01339 [1] SPACER
18 XKAY-01340 [1] O-RING
19 XKAY-01371 [1] RING-BACK UP
26 XKAY-01348 [2] POPPET
27 XKAY-01349 [2] SPRNG
29 XKAY-01351 [3] POPPET
31 XKAY-01353 [4] SPRING
32 XKAY-01354 [3] FLANGE
33 XKAY-01355 [4] O-RING
35 XKAY-01357 [1] H/D VALVE ASSY
44 XKAY-01367 [2] FLANGE
N49. XKAY-01485 [2] PLUG ASSY
N51. XKAY-01497 [24] BOLT-SOCKET HEAD
N52. XKAY-01498 [2] BOLT-SOCKET HEAD
60 XKAY-01375 [1] O-RING
63 XKAY-00065 [1] PLUG
N65. XKAY-01499 [12] BOLT-SOCKET HEAD
N. @ [1] NOT INDIVIDUALLY SUPPLIED





Pos. Part No Qty Parts name Comments
*. @ [1] MAIN CONTROL VALVE SEE 4055
2 31QB-17620 [1] HOUSING-P2
3 31QB-17630 [1] SPOOL KIT-TRAVEL
4 31QB-17640 [1] SPOOL KIT - ARM1 TYPE 2
4 31QB-17641 [1] SPOOL KIT - ARM 1 TYPE 3
7 31QB-17670 [1] SPOOL KIT - SWING
9 31QB-17690 [1] SPOOL KIT - BOOM 2 TYPE 2
9 31QB-17691 [1] SPOOL KIT - BOOM2 TYPE 3
10 31QB-17700 [1] SPOOL KIT - OPTION
N13. 31QB-17960 [1] LOGIC VALVE-SWING
13 31QB-17960K [1] LOGIC VALVE-SWING
14 31QB-17980 [1] HOLDING VALVE
16 31QB-17730 [1] MAIN RELIEF VALVE
16 31QB-17730K [1] MAIN RELIEF VALVE
23 31QB-17910 [1] PLUG ASSY-SIGNAL
28 31N4-18090 [1] PLUG
29 31N8-17500 [1] PLUG
32 31QB-17840 [5] PILOT CAP-LARGE
33 31QB-17850 [5] PILOT CAP-SMALL
34 31QB-17880 [4] FLANGE-LOAD CHECK
35 31QB-17890 [2] FLANGE-MR
36 31QB-17900 [2] FLANGE-OPTION
37 31QB-18620 [1] POPPET-MR
38 31QB-18630 [3] POPPET-LOAD CHECK
39 31QB-18640 [1] POPPET-LOAD CHECK
40 31QB-18650 [1] POPPET-MAIN H/D
45 31QB-17990 [1] SPACER ASSY-MR
47 31QB-18700 [1] SPRING-MR
48 31QB-18710 [5] SPRING-LOAD CHECK
52 S632-055004 [10] O-RING
53 S631-041004 [6] O-RING
54 S631-026004 [4] O-RING
56 S631-010004 [1] O-RING
58 Y171-024001 [2] O-RING TYPE 2
58 Y171-024004 [2] O-RING TYPE 3
59 S109-120556 [4] BOLT-SOCKET
60 S109-100406 [4] BOLT-SOCKET
62 S109-121206 [4] BOLT-SOCKET
63 S109-120456 [36] BOLT-SOCKET
64 S109-100456 [8] BOLT-SOCKET
66 S107-120154 [12] BOLT-SOCKET
67 S107-100154 [20] BOLT-SOCKET
69 31N8-19450 [10] CAP-DUST
70 31N8-19460 [7] CAP-DUST
71 31QB-19600 [1] COVER 2-1/2
72 31QB-19610 [1] GASKET 2-1/2
73 31QB-19620 [2] COVER 1-1/4
74 31QB-19630 [2] GASKET 1-1/4
75 31QB-19640 [5] COVER 1
76 31QB-19650 [5] GASKET 1
77 31N8-19410 [1] NAME PLATE
78 31N8-19490 [2] RIVET-SCREW TYPE





31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket









31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket



31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket

31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket

31QB-17100 31QB-17000 For Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE aftermarket





Why choose us?

1, Do you still find a company which can provide one-stop solution to your problem? Why not choose us?

2, Do you still find a company which could provide high-quality products with comparative price? How about choose us?

3, Do you still find a company which is glad to to take good service to make you feel at home? Why do not take us into consideration?

4, Do you have a high requirements for products, ant hope it could have large stock, short delivery time and long warranty period? Welcome to our company and choose products that meet your needs.

5, As a professional company in this industry, we have accurate data to follow the excavator brand part number inquiry, guarantees the product’s correct rate.You can trust us because we can find parts for nearly all your needs.
