39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION |
| Model:39K9-12100 FOR HYUNDAI HX340SL HX330L SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL | category: SWING REDUCTION GEAR |
| Brand: TQ | Place of Origin:Other Country |
| Condition: Original & Oem | Warranty: 12 months |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
| Guarantee: We will check and send detailed pictures to buyers for confirmation |

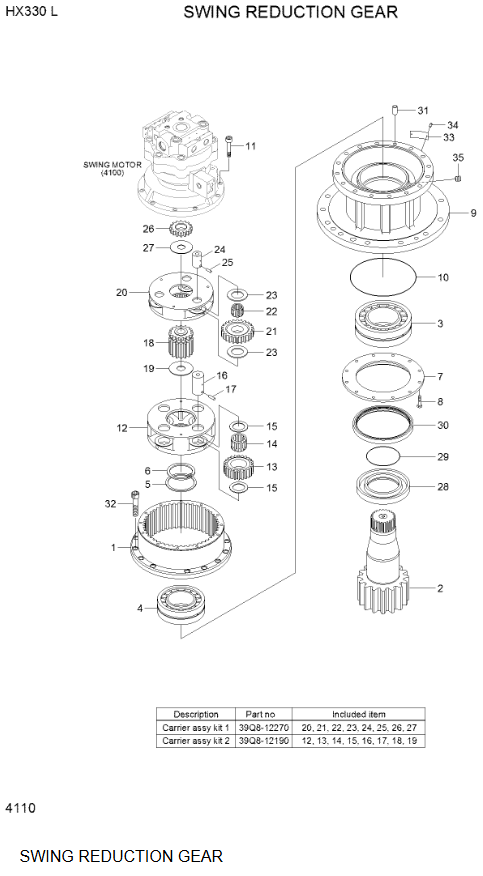

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 38K9-10150 | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 39K9-12100 | [1] | SWING REDUCTION GEAR |
|
| 1 | 39Q8-12110 | [1] | GEAR RING |
|
| 2 | 39K9-12120 | [1] | DRIVE SHAFT |
|
| 3 | 39K9-12130 | [1] | BEARING-SPH.ROLLER | MAIN |
| 4 | 39Q8-12140 | [1] | BEARING-SPH.ROLLER | SUB |
| 5 | 39Q8-12150 | [1] | PLATE-THRUST |
|
| 6 | 39Q8-12160 | [1] | RING-SNAP |
|
| 7 | 39Q8-12170 | [1] | COVER |
|
| 8 | S017-120306 | [12] | BOLT-HEX |
|
| 9 | 39Q8-12180 | [1] | CASING |
|
| 10 | S632-290001 | [1] | O-RING |
|
| 11 | S109-100306 | [12] | BOLT-SOCKET |
|
| NK12. | 39Q8-12201 | [1] | CARRIER NO.2 |
|
| NK13. | 39Q8-12211 | [4] | GEAR-PLANETARY NO.2 |
|
| NK14. | 39Q8-12220 | [4] | BEARING-NEEDLE NO.2 |
|
| NK15. | 39Q8-12231 | [8] | WASHER-THRUST NO.2 |
|
| NK16. | 39Q8-12240 | [4] | PIN-CARRIER NO.2 |
|
| NK17. | S472-910404 | [4] | PIN-SPRING |
|
| K18. | 39Q8-12251 | [1] | GEAR-SUN NO.2 |
|
| NK19. | 39Q8-12261 | [1] | PLATE-THRUST NO.2 |
|
| NK20. | 39Q8-12281 | [1] | CARRIER NO.1 |
|
| NK21. | 39Q8-12291 | [3] | GEAR-PLANETARY NO.1 |
|
| NK22. | 39Q8-12300 | [3] | BEARING-NEEDLE NO.1 |
|
| NK23. | 39Q8-12311 | [6] | WASHER-THRUST NO.1 |
|
| NK24. | 39Q8-12320 | [3] | PIN-CARRIER NO.1 |
|
| NK25. | S472-800404 | [3] | PIN-SPRING NO.1 |
|
| K26. | 39Q8-12331 | [1] | GEAR-SUN NO.1 |
|
| NK27. | 39Q8-12341 | [1] | PLATE-THRUST NO.1 |
|
| 28 | 39Q8-12350 | [1] | SLEEVE |
|
| 29 | S632-140001 | [1] | O-RING |
|
| 30 | 39Q6-12350 | [1] | SEAL-OIL |
|
| 31 | 39Q6-41450 | [2] | PIN-PARALLEL |
|
| 32 | S109-18050D | [14] | BOLT-SOCKET |
|
| 33 | 39K9-12360 | [1] | NAME PLATE |
|
| 34 | 39Q6-41800 | [2] | RIVET |
|
| 35 | P220-430204 | [1] | PLUG-HEX |
|
| K. | 39Q8-12270 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
| K. | 39Q8-12190 | [1] | CARRIER ASSY KIT 2 | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
|
